FISHING ELECTRONICS Garmin Echomap CHIRP 55cv

Fish with the Power of CHIRP

• 5-inch color display with keypad control
• Includes transducer with high-wide CHIRP and CHIRP ClearVü
• Preloaded Canada LakeVü HD maps cover more than 13,500 lakes, of which more than 4,800 are HD lakes with 1-foot contours shore to shore
• Includes Quickdraw Contours custom HD map creation software
• Internal 5 Hz GPS updates position and heading 5 times per second

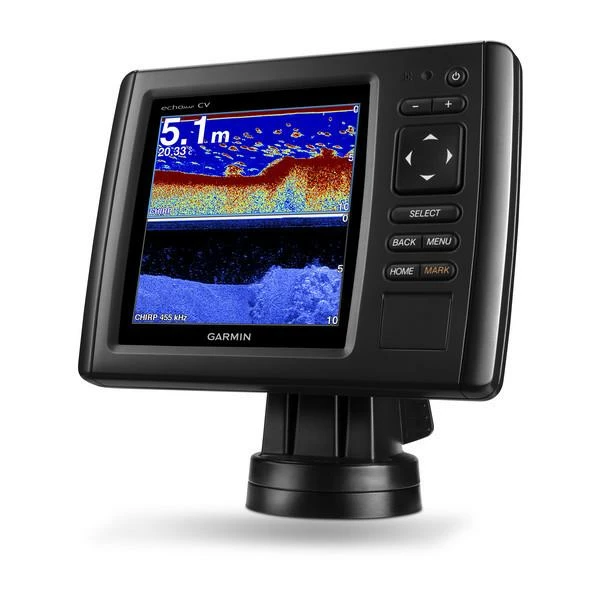

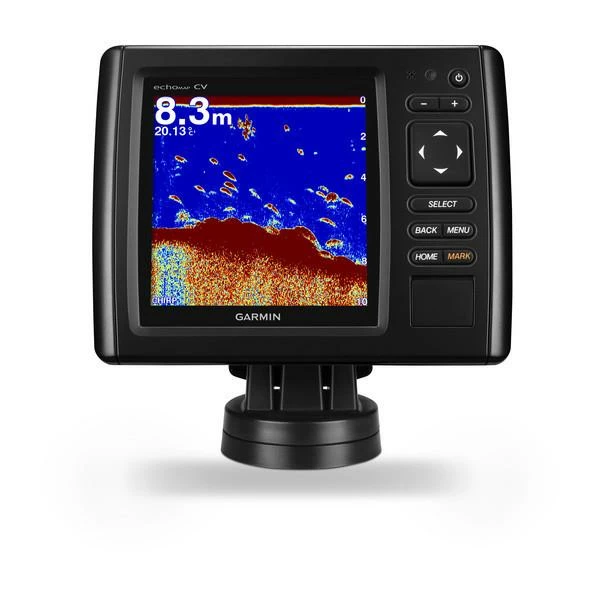

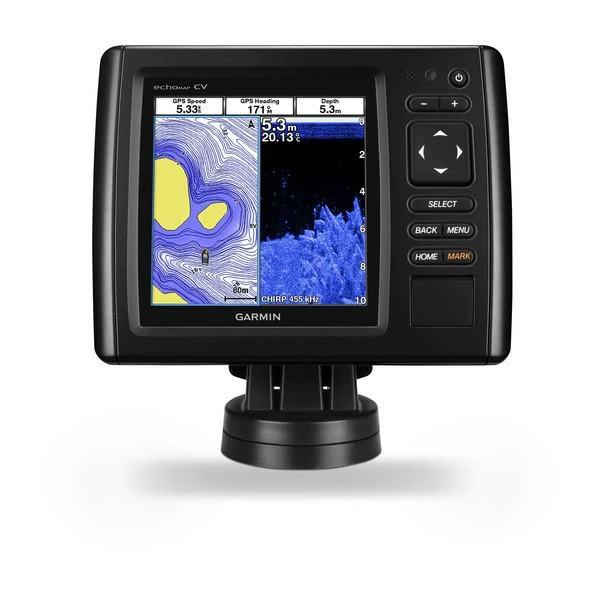

It’s time you started fishing with the power of CHIRP sonar. The easy-to-install, easy-to-use 5-inch echoMAP CHIRP 55cv chartplotter includes transducer for high wide CHIRP sonar and Garmin CHIRP ClearVü™ for clear scanning sonar images. It includes Quickdraw Contours software to instantly create your very own HD maps with 1-foot contours as you fish. Internal 5 Hz GPS updates position and heading 5 times per second. Cords plug directly into the mount, allowing you to quickly install and remove your device from power and mount. Transom and trolling motor mounts included.

The Garmin CHIRP Difference

The built-in sonar capabilities of echoMAP CHIRP 55cv include CHIRP sonar, the most sophisticated sonar technology available for the fishing and boating public. CHIRP sonar provides amazingly clear target separation and definition because it puts even more energy onto the target than traditional sonar. It also includes sonar-recording capability that coordinates the timing of the sonar return with your boat’s position and saves digital information for playback on a computer using HomePort™ planning software. Use the user data sharing cable to share waypoints and routes between multiple devices.

Clear Scanning Sonar Images

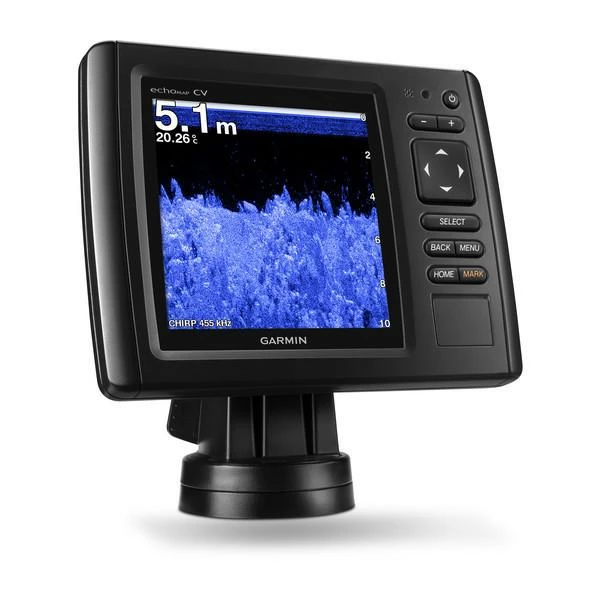

Garmin ClearVü scanning sonar gives you a nearly photographic, wide image of what passes below your boat. You clearly see structure, submerged objects and fish. Traditional Garmin HD-ID™ sonar and ClearVü scanning sonar are combined into 1 transducer. Also provides HD-ID support for Minn Kota® and MotorGuide® trolling motors with integrated transducers.

Preloaded Canada LakeVü HD Maps

These highly detailed freshwater maps include 13,500 Canada lakes, rivers and reservoirs, including coverage for the Great Lakes and Trent Severn Waterway. That number also includes more than 4,800 HD lakes with 1-foot contours shore to shore in Alberta, British Columbia, Nova Scotia, Ontario, Quebec, Saskatchewan and Yukon provinces. Canada LakeVü HD gives you excellent detail of underwater features, plus Shallow Water Shading allows you to designate a minimum depth. It also shows interstates, highways, general roads and bridges, designated fishing areas, docks, boat ramps, marinas and campgrounds.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps onscreen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Take Your echoMAP CHIRP with You

When you’re off the water, it’s easy to keep your echoMAP CHIRP safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your echoMAP CHIRP from power and the mount.

Upgrade to Our Best Maps on the Water

A single microSD™ card slot provides expandable memory for accessory map purchases such as Canada LakeVü HD Ultra, BlueChart® g2 HD or BlueChart® g2 Vision® HD. Canada LakeVü HD Ultra adds high-resolution relief shading, Dynamic Lake Level and Depth Range Shading. It also provides exclusive Garmin Auto Guidance, a technology that directs you to your hot spots. Based on your boat’s specifications, Auto Guidance¹ instantly creates a visual path you can follow to avoid shallow water and other charted obstructions.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

¹Auto Guidance is for planning purposes only and does not replace safe navigation operations
